A straight shank end mill being sharpened, held on C2AH fixture with 5C collet.

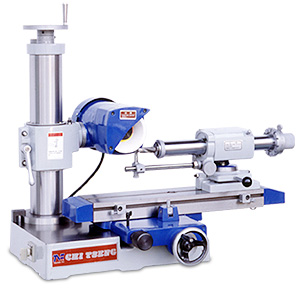

CT-205
CT-610 Features:
  1. Work table is driven by steel
    rollers for smooth movement.
  2. Pretty and sturdy, suitable for
    various tools grinding.
  3. Pneumatic axis seat is made of
    headed treated aluminum alloy,
    easy operation and high accuracy.
  4. Main spindle is able to up or
    down for 160mm.
  5. Driven by worm and gear,
    grinding wheel's swivel and angle
    are adjustable.
  6. Column is able to swivel for 360
  7. Eliminate forward/backforward
    feed rod screw's play.

1.Cup wheel 1 pcs 2.5C collet 1 set(7 pcs) "CT-610 With End mill grinder. Air bearing fixture 5C, 5C collet taper" 3.Adjusting tools

Model CT-205 CT-610
Distance between center 270mm
10.5"
250mm
10"
Working table area 130x550mm
51"x21"
133x470mm
5.2"x18.5"
Longitudinal travel of table 200mm 250mm
Swing over table 280mm
11.2"
208mm
8"
Cross travel of saddle 150mm
6"
160mm
6.3"
Swivel adjustment of table
Vertical adjustment of wheel 290mm
11.4"
190mm
7.5"
Swivel adjustment of column 360º 360º
Vertical tilting range wheel head 360º 360º
Saucer wheel
Diameter of wheel Flaring cup
150mm(6")
120mm(5")
150mm(6")
125mm(5")
  50Hz
Speed of wheel 60Hz
2850rpm
3450rpm
2850rpm
3450rpm
  1PH
Motor 3PH
1/3HP, 110-240V
1/3HP, 220-460V
1/3HP, 110-240V
1/3HP, 220-460V
Measurement(LxHxH) 720x610x880mm
28.4"x24"x34.7"
762x686x762mm
30"x27"x30"
Weight N.W.160kg
G.W.200kg
N.W.125kg
G.W.160kg

FUNCTION, SPECIAL ACCESSORIES
